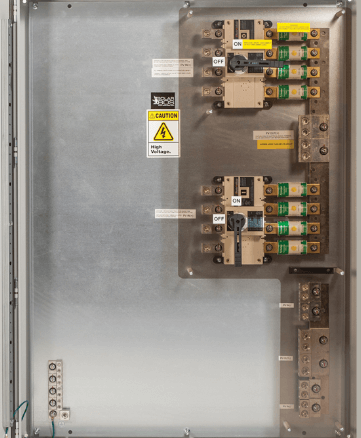

RECOMBINERS

Our recombiners are utilized in large scale commercial and utility size solar projects. Terrasmart Recombiners are used to combine the outputs of several DC combiners before connecting to the inverter. Covering a range of input and fuse sizes, recombiners are highly configurable and can be designed for site specific requirements.

PRODUCT FEATURES

 Listed to UL-1741

 Up to 16 input
circuits

 Rated for 1000 or
1500 VDC

275, 320, 400, and
600 Amp load
break disconnects

75/90C AI/Cu
input/output
terminals

NEMA-3R, 4 & 4X
enclosures

Rated for
continuous duty

AVAILABLE OPTIONS

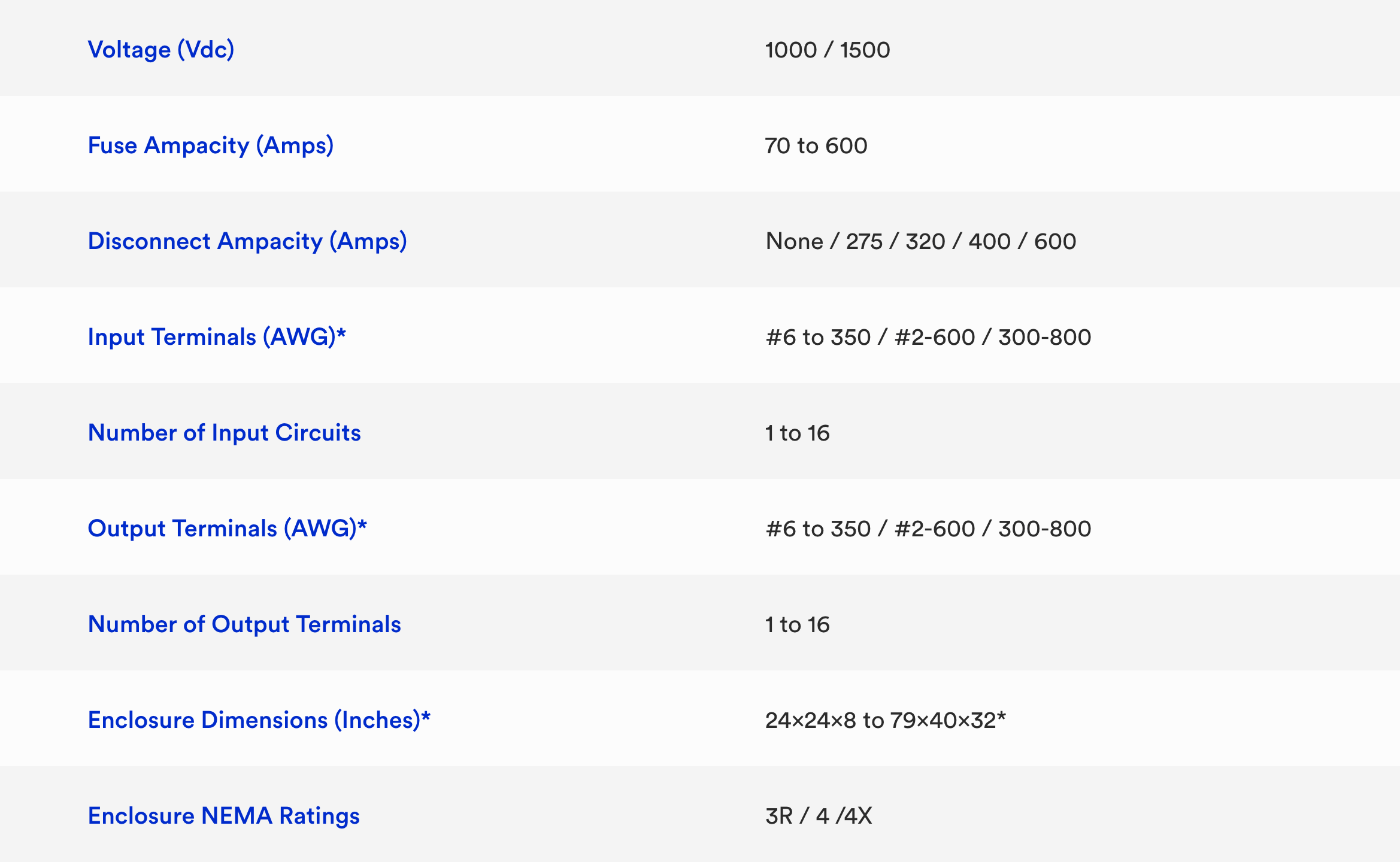

SPECIFICATIONS

*Other options available upon request. Please note dimensions and weight may vary for any custom solutions. Contact us for details.

SITE SPECIFIC
CUSTOMIZATION
